SFP-LX-SM SFP transceiver supports up to 10km link lengths over LC duplex SMF fiber. Each SFP transceiver module is individually tested to be used on a series of Cisco switches, routers, servers, network interface card (NICs) etc.Featuring low power consumption, the hot swappable 1G SFP transceiver is ideal for Internet Service Provider (ISP) Gigabit Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links.

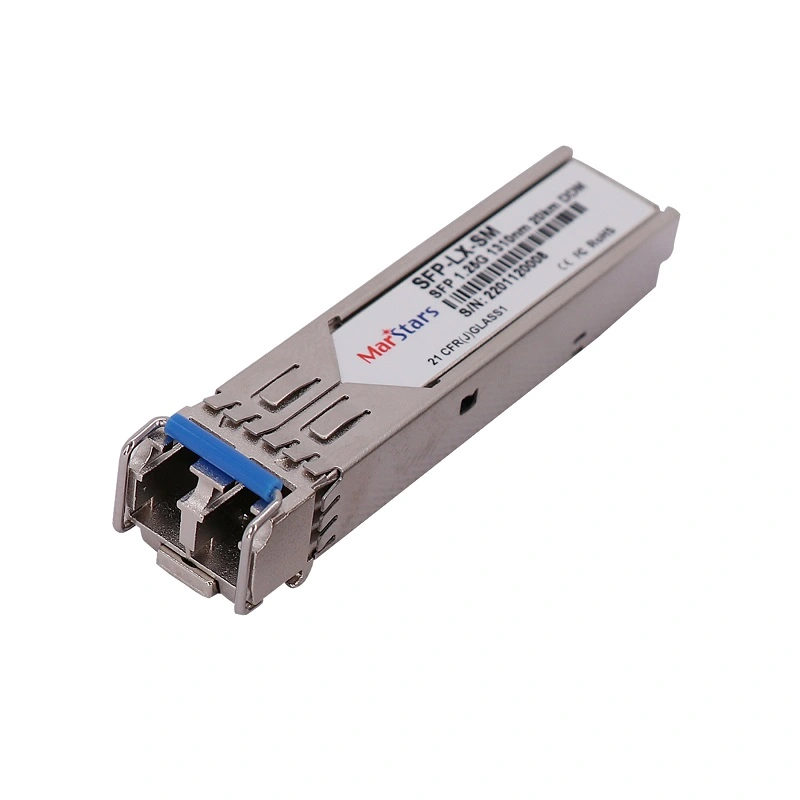

SFP-LX-SM 1000BASE-LX/LH SFP Transceiver Module (SMF, 1310nm, 10km/20km, LC DOM)
| SFP Module | 1.25G SFP-LX-SM 1310nm 10km |
|---|---|
| Form Factor | SFP |
| Max Data Rate | 1.25Gbps |
| Wavelength | 1310nm |
| Max Cable Distance | 10km/20km @SMF |
| Connector | Duplex LC |
| Optical Components | FP |
| Media | SMF |
| DOM Support | Yes |
| TX Power | -9.5~-3dBm |
| Receiver Sensitivity | < -20dBm |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | IEEE 802.3z, SFF-8472, SFP MSA (INF-8074i) Compliant |
