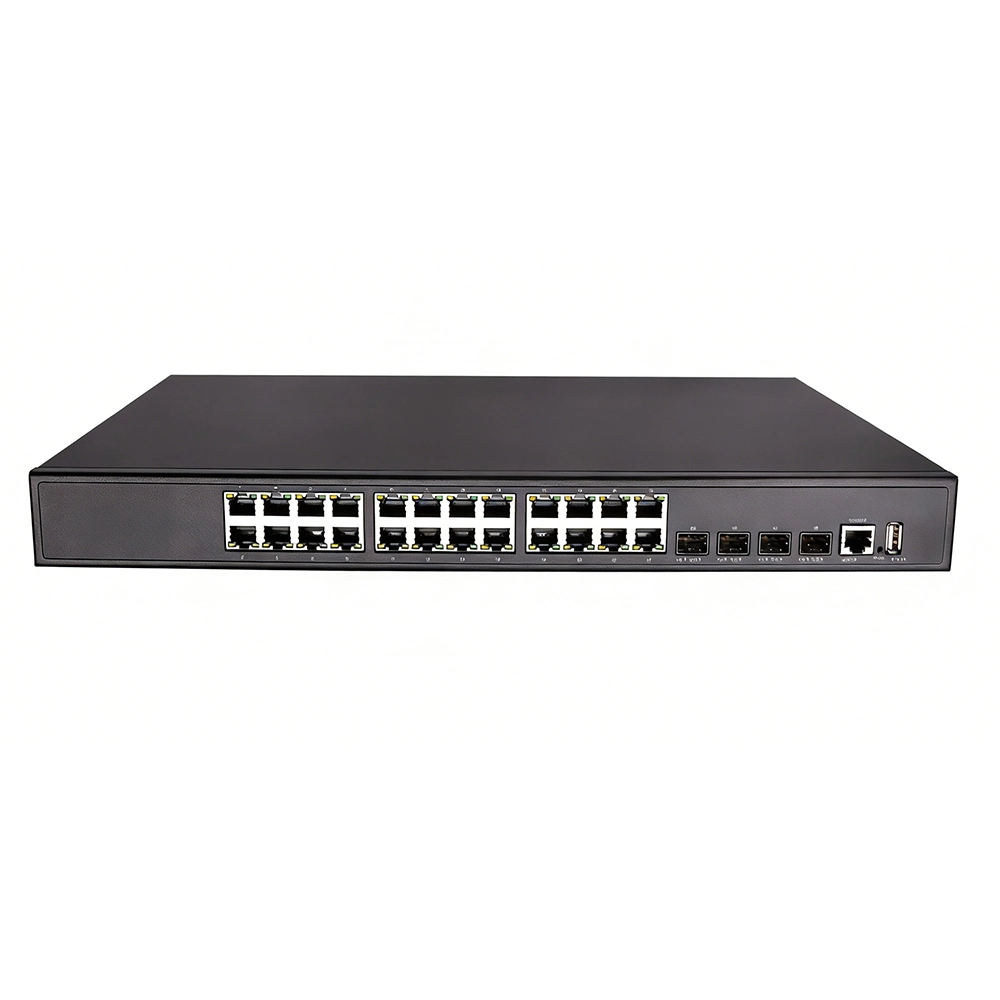

24-Port Gigabit Ethernet PoE Switch, 24 x PoE Ports @450W, with 4 x 10Gb SFP+ Uplinks

MT-FS8424-24P 24-Port PoE Switch is equipped with 24x 10/100/1000BASE-T ports, 4 x 10Gb SFP+, and 24x RJ45 ports that support both IEEE 802.3af PoE and IEEE 802.3at PoE+ (up to 30W per port) for powering attached IP phones, wireless access points, or other standards-compliant PoE and PoE+ end network devices. It is targeted at the , government and enterprise networks, Internet café, diskless working environment and IP MAN (metropolitan area network).

With high switching performance and reliability, the product features a large cache and low transmission delay, which supports access to Ultra HD video.

Fixed Port

24 10/100/1000Mbps POE ports
4 10G SFP+Slots
1 RJ45 Console Port
1 Micro-USB Console Port

POE Port

Port 1-24 support PoE @ IEEE802.3af/at

Console Port

1*console port

Network Protocol

IEEE 802.3i 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX/FX
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-X
IEEE 802.3ae 10GBASE-SR/LR
IEEE 802.3av GVRP
IEEE 802.3x Flow control
IEEE 802.3ad Link Aggregation
IEEE 802.1v Protocol VLAN
IEEE 802.1d Spanning Tree Protocol (STP) IEEE 802.1s Rapid Spanning Tree (RSTP) IEEE 802.1w Multiple Spanning Tree (MSTP) IEEE 802.1q VLANs / VLAN tagging
IEEE 802.1x Network Login Security
IEEE 802.1p QoS

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
10000BASE-X: MMF, SMF
10GBASE-LR
10GBASE-SR

Ethernet Port Feature

10/100/1000Base–T(X) automatic detection, full/half Duplex MDI/MDI-X adaptive

Switching Capacity

128Gbps

Packet Forwarding

95.3Mpps

Forwarding Mode

Store and Forward

MAC

32K

Buffer Memory

4.1M

Transmission Distance

10BASE-T : Cat3,4,5 UTP(≤250 meter)
100BASE-TX : Cat5 or later UTP(≤100 meter)
1000BASE-TX : Cat6 or later UTP(≤1000 meter)
1000BASE-SX:62.5μm/50μm MMF(2m~550m)
1000BASE-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)

Flash memory capacity

256MB

The memory capacity

2G

Jumbo Frame

12KB

LED Indicator

PWR:Power LED
SYS:(System LED)
Port:(Orange=PoE LED+Green=Link LED)

Power Supply

Built-in power AC 100~240V 50/60HZ, 450W

Power Consumption

Standby:<27W;Full load:<450W

Operation TEMP / Humidity

-20~+55°C:5%~90% RH non condensing

Storage TEMP / Humidity

-40~+75°C;5%~95% RH non condensing

Dimension

440mm*280mm*44mm

Net /Gross Weight

3.9kg/4.8kg

Installation Method

1U Rack Mount Chassis

Lightning protection level

6KV 8/20us;
IP30

Protection Level

IP30

Certification

CCC;CE mark, commercial;CE/LVD EN60950; FCC Part 15 Class B;RoHS

Warranty

1 years, lifetime maintenance.

Layer2 Function

Support L2 managed function,
Support IPV4/IPV6 management
Support layer3 soft routing (weak three tier) forwarding,
Support different network segments, communication between different VLAN
Support static routing / default routing 128, 1024 ARP software forwarding
Support G.8032 (ERPS), support 255 loops at most, and supports 1024 devices per ring.
Support IGMP Snooping V1/V2 and support 1024 multicast groups at most.
Support 802.1p/DSCP priority mapping
Support ACL, DHCP

L3 Features

-L3 Routing
*128 IPv4 Interface entries
*256 IPv4 Static Routing entries
*8K IPv4 Dynamic Routing entries
-RIP v1, v2
-OSPF v1, v2,V3
-IGMP v1, v2, v3
