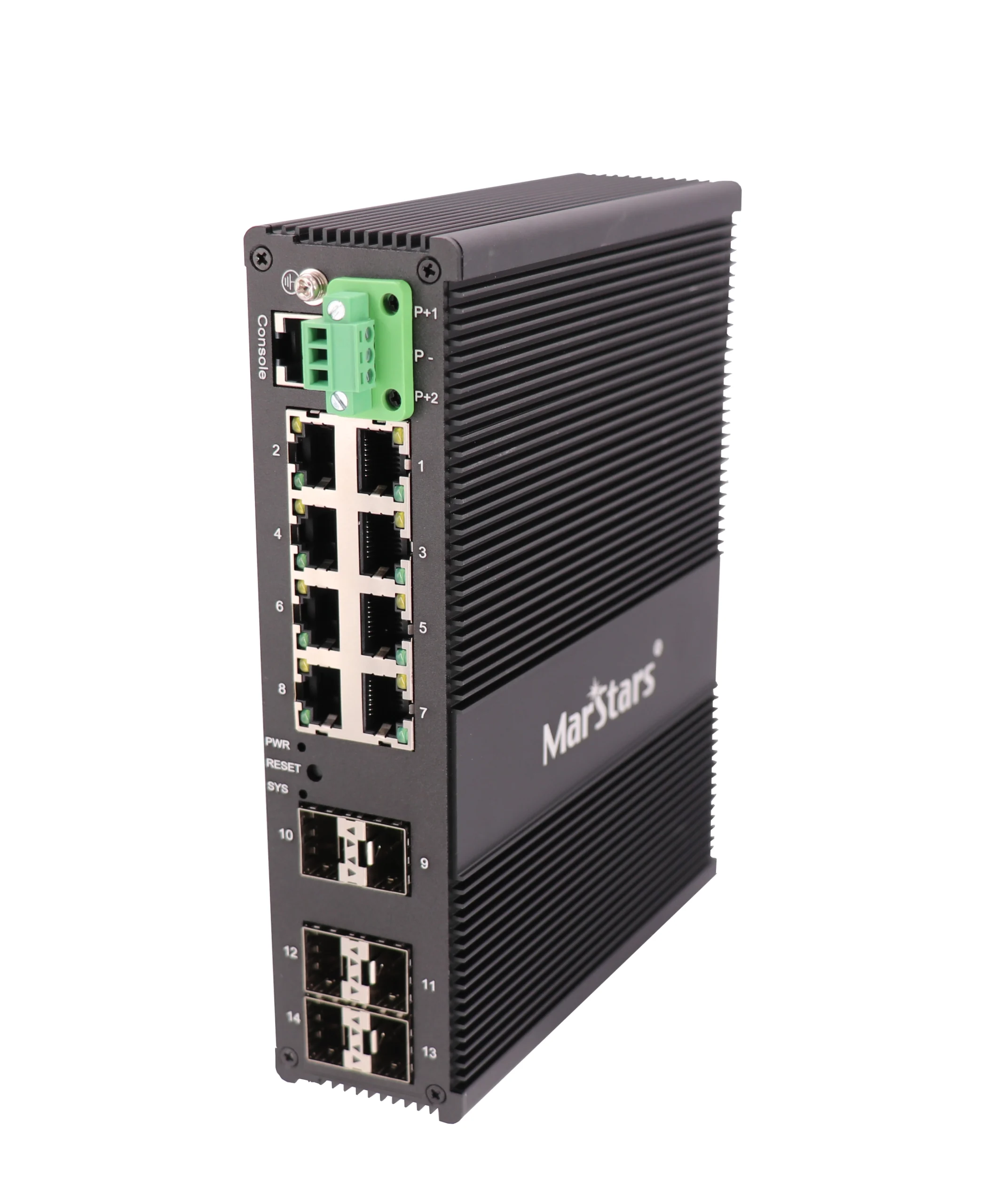

10G Managed Industrial Switch 8 Port

The MT-FI8608M series features 8x 10/100/1000BASE-T PoE+ ports, 2/4/6 x 1/10Gb SFP+ ports, which is designed especially for a broad spectrum of industrial and extended enterprise connectivity needs. With 8 PoE+ in a compact form factor, the IP40-rated rugged switch is designed for power and space-constrained areas like traffic control cabinets, factory floors, and extreme outdoor environments. 8x RJ45 ports support IEEE 802.3at PoE+ (up to 30W per port) for powering IP cameras, wireless APs, and sensors. This layer 2 industrial managed switch supports enhanced L2+ functions such as VLAN, QoS, IGMP Snooping, LACP, etc.

Fixed Port	8x 10/100/1000Base-T Ethernet RJ45 2/4/6 4*1G/10G SFP+
POE Port	Port 1-8 support PoE @ IEEE802.3af/at
Console Port	1*console port
Power connector	3P Phoenix terminal, dual power supply redundancy
Network Protocol	IEEE 802.3 IEEE 802.3u 100BASE-TX IEEE 802.3ab1000BASE-T IEEE 802.3x IEEE 802.3z 1000BASE-X IEEE 802.3af/at IEEE 802.3ad IEEE 802.3q 、IEEE 802.3q/p IEEE 802.1w、IEEE 802.1d 、IEEE 802.1S STP(Spanning Tree Protocol) RSTP/MSTP( Rapid Spanning Tree Protocol) EPPS ring network protocol EAPS ring network protocol
Ethernet Port Feature	10/100/1000Base–T(X) automatic detection, full/half Duplex MDI/MDI-X adaptive
Switching Capacity	160Gbps
Packet Forwarding	95.23Mpps
Forwarding Mode	Store and Forward
Forwarding delay	<10us
MAC	16K
Buffer Memory	12M
Transmission Distance	10BASE-T ： Cat3,4,5 UTP(≤250 meter) 100BASE-TX ： Cat5 or later UTP(≤100 meter) 1000BASE-TX ： Cat6 or later UTP(≤1000 meter) 1000BASE-SX:62.5μm/50μm MMF(2m~550m) 1000BASE-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)
FLASH	32M
RAM	2G
LED Indicator	PWR (green); System indicator:SYS(green); Network port indicator:yellow(1000 or POE) Green (Link)
Power Consumption	Non-POE full load (Total power) <10W POE full load <240W
Operation TEMP / Humidity	-40~+75°C:5%~90% RH non condensing
Storage TEMP / Humidity	-40~+85°C;5%~95% RH non condensing
Dimension	181x146x47mm
Net /Gross Weight	1.5kg
Installation Method	DIN Rail Installation
Protection	Shell: IP40 protection, aluminum alloy housing IEC 61000-4-5 Level 3 (4KV/2KV) (8/20us) IEC 61000-4-5 Level 3 (6KV/2KV) (10/700us) IEC 61000-4-3 Level 3 (10V/m) IEC 61000-4-4 Level 3 (1V/2V) IEC 61000-4-6 Level 3 (10V/m) IEC 61000-4-8 Level4 (30A/m) IEC 61000-4-11 Level3 (10V) EMI CLASS A IEC 61000-4-2 Level 4 (15KV/30KV)
MTBF	100,000 hours
Certification	CCC;CE mark, commercial;CE/LVD EN60950; FCC Part 15 Class B;RoHS
Warranty	5-years
Layer2 Function	Support L2 managed function, Support IPV4/IPV6 management Support layer3 soft routing (weak three tier) forwarding, Support different network segments, communication between different VLAN Support static routing / default routing 128, 1024 ARP software forwarding Support G.8032 (ERPS), support 255 loops at most, and supports 1024 devices per ring. Support IGMP Snooping V1/V2 and support 1024 multicast groups at most. Support 802.1p/DSCP priority mapping Support ACL, DHCP
L3 Features	-L3 Routing 128 IPv4 Interface entries 256 IPv4 Static Routing entries *8K IPv4 Dynamic Routing entries -RIP v1, v2 -OSPF v1, v2，V3 -IGMP v1, v2, v3
