The SFP+ transceiver supports up to 40km link lengths over single-mode fiber (SMF) via an LC duplex connector. This transceiver is compliant with SFF-8431 and SFF-8472 MSA standards. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, to allow access to real-time operating parameters. This transceiver uses Sumitomo’s TOSA, ensuring stable performance and reliable quality. With these features, this easy to install, hot swappable transceiver is suitable for fiber communications application such as 10G Ethernet.

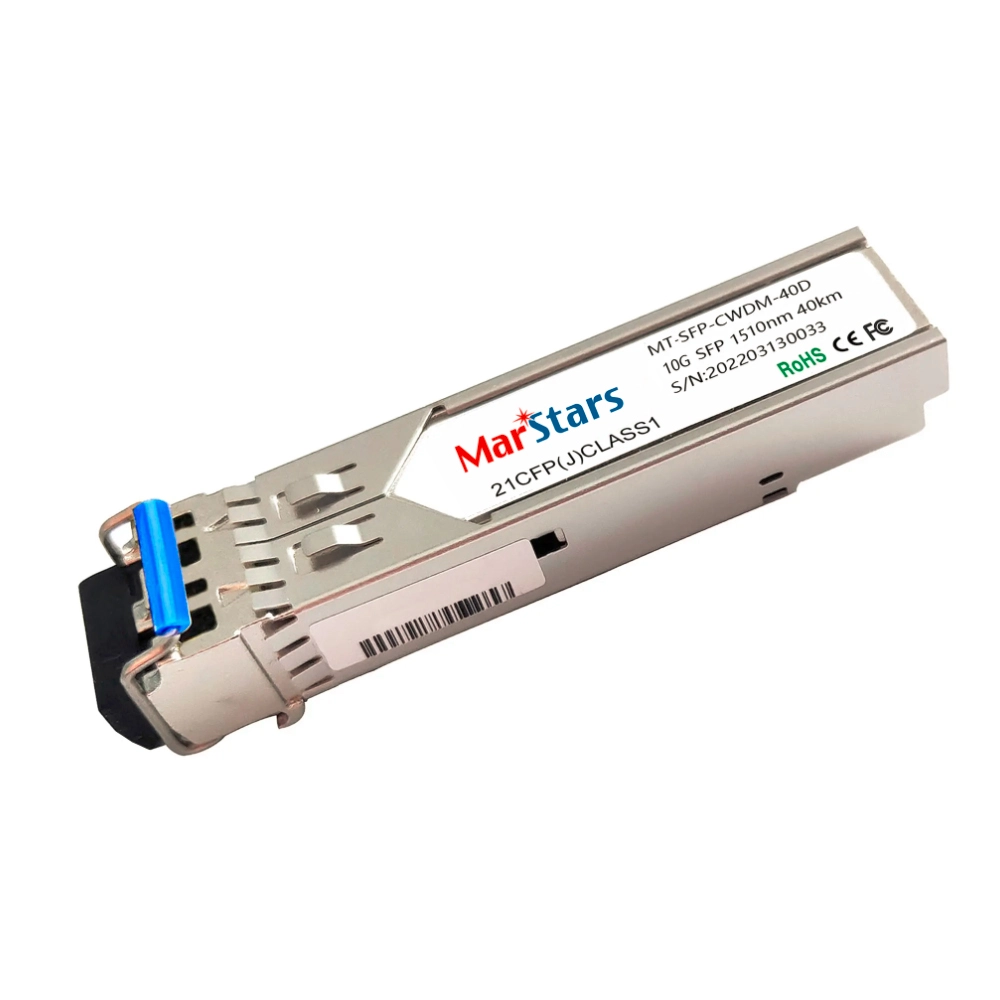

CWDM-SFP10G 10G CWDM SFP+ Transceiver Module (SMF, 1270nm~1610nm, 40km, LC, DOM)
| SFP Module | CWDM-SFP+10G 1270nm~1610nm 40km |
|---|---|
| Form Factor | SFP+ |
| Max Data Rate | 11.0957Gbps |
| Wavelength | 1270nm~1610nm |
| Max Cable Distance | 40km |
| Connector | Duplex LC |
| Optical Components | EML CWDM |
| Media | SMF |
| DOM Support | Yes |
| TX Power | 0~4dBm |
| Receiver Sensitivity | <-23dBm |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | SFP+ MSA Compliant, SFF 8472,SFF 8431,802.3ae, ITU-T |
