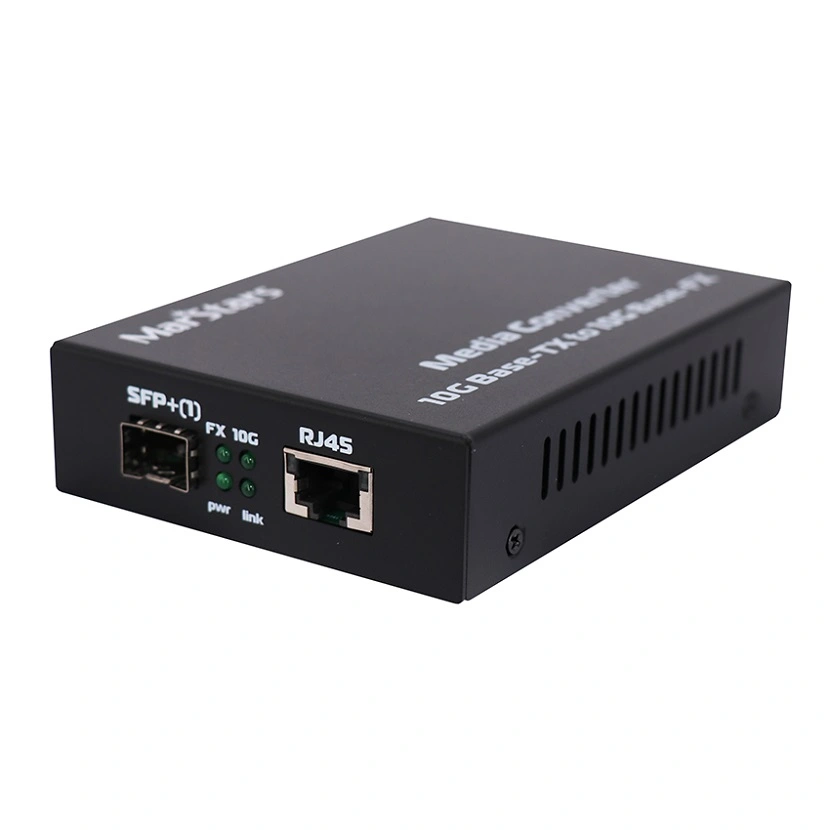

1x 100M/1G/2.5G/5G/10GBase-T RJ45 to 1x 10GBase-X SFP+ Slot Unmanaged 10Gigabit Ethernet Media Converter

The MT-FC10G-SFP+ Unmanaged 10Gigabit Ethernet Media Converter bridges 10GBase-X fiber to 100M/1G/2.5G/5G/10GBase-T copper networks, enabling fiber extensions up to 2KM (Multimode) or 160KM (Single Mode/WDM) via SFP modules. It features integrated LED indicators (Power, Link, Activity, Speed) for easy status monitoring and maintenance, helping reduce network downtime. With built-in Link Fault Pass-through (LFP) technology, the MT-FC10G-SFP+ enhances troubleshooting efficiency and network reliability. Supporting desktop and wall-mount installation, it is a flexible solution for ISP infrastructures and small office deployments. It is also compatible with various transceivers, including 10GBase-X SFP, BIDI, and CWDM modules. Be sure that the wavelength, speed rate, and the distance of the transceiver modules used at both ends of the media converter are consistent.

Protocol Standard

IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3an, IEEE 802.3ae, IEEE 802.3x

Wavelength

850nm/1310nm/1550nm

Transmission Distance

Cat5 100m
Single Mode, Single-fiber 20/40/60/80/100Km

Ethernet Port

RJ45 Ports, Connection STP / UTP Cat5/5e/6/6a/7 Cooper Cable

Fiber Port

SFP Slot(10G SFP+ Transceiver Module)

Exchange Attribute

Single Mode, Single-fiber, SC/ST/FC (Diameter 9/125μm )
Conversion Method: Media conversion, store and forward / straight in
MAC Add: 1 K
Cache: 1 Mbit
Full duplex state: flow control, half-duplex: backpressure mode
Store and Forward: 9.6us, Straight In: 0.9us
BER: <1/1000000000

LED Indicator

PWR( Power Supply )
FX LINK/ACT
FDX ( Ethernet port full / half duplex mode )
TX LINK/ACT ( Ethernet port communication / action )
10000 ( 10000/1000/100M transmission rate )
FX ( Optical signal )

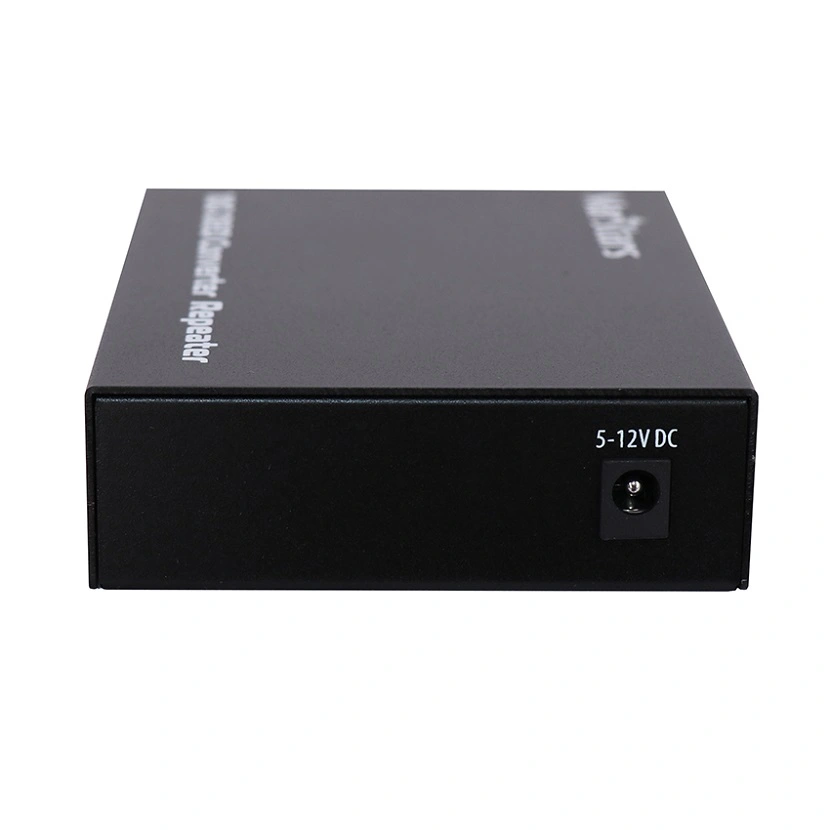

Power Supply

Power Input: DC5~12V
Full Load: <3.5 W

Working Environment

Operating Temperature: -20~70℃
Storage Temperature: -40~70℃
Storage Humidity: 5% to 90% non-condensing

Dimension

94*71*26mm ( L * W * H )

Certification

CE, FCC, RoHS

Warranty

3-years
