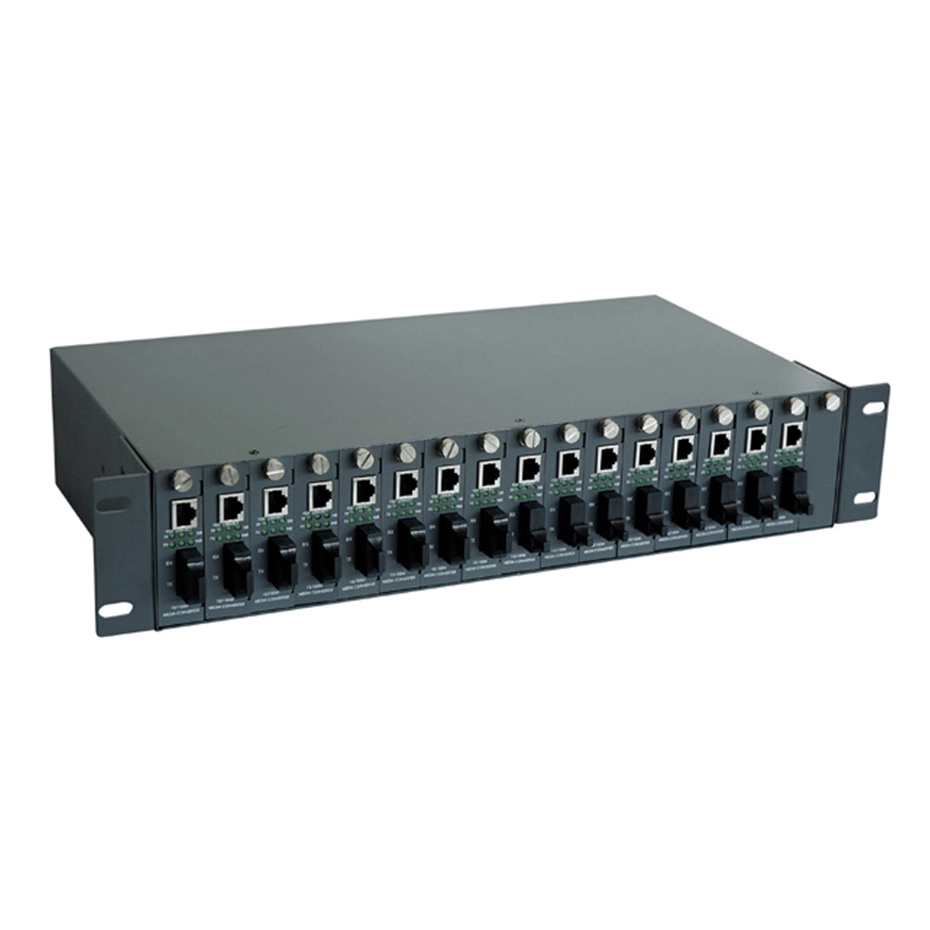

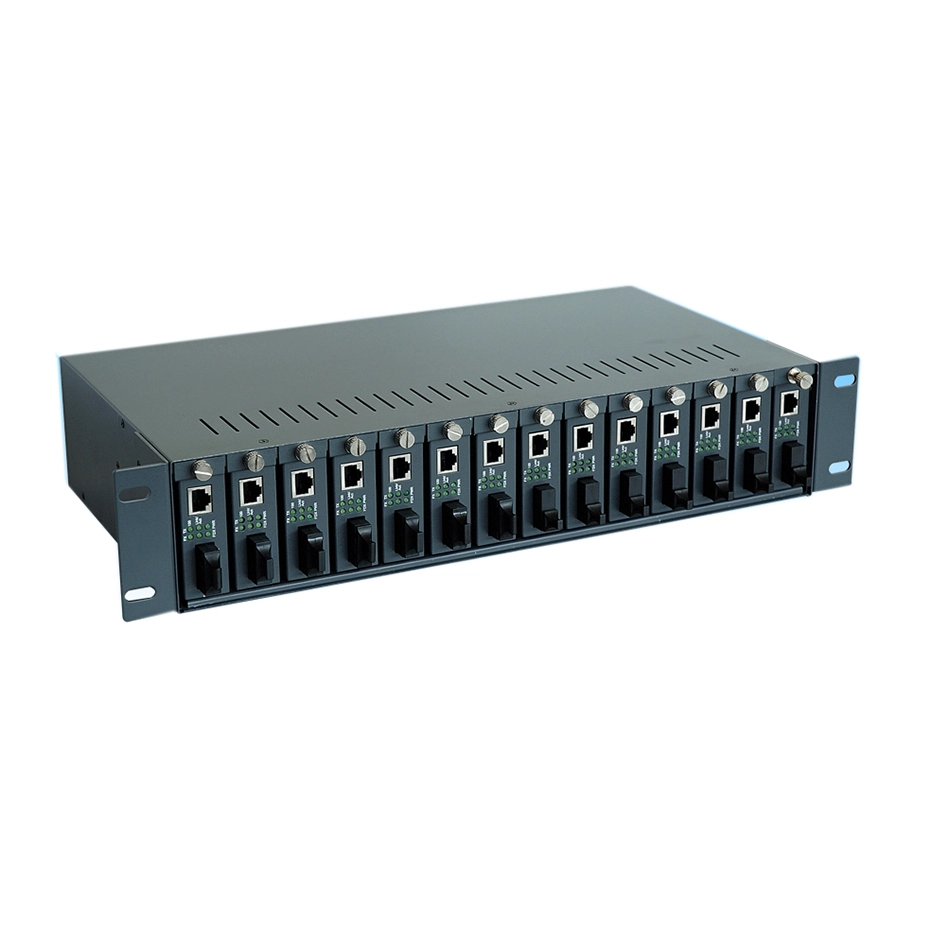

14/16 Slots Media Converter Chassis, 2U Rack Mount, Dual AC or DC Powers

The 14/16-slot Rackmount chassis is designed to accommodate desktop Media Converters for central power supply, saving space and power cables. This 2U rack-mountable converter chassis is ideal for high-density fiber optic network applications. The chassis allows multiple converters to be organized in an equipment rack, saving space and keeping cabling neat alongside network devices.

MT-R14/16 series is economic converter module integrated 19″ rack used in equipment room. As many as up to 14/16 transceivers of different types can be inserted, with double-source power supply, and automatic switching can be realized.

Slots Provided

14/ 16 Slots

Structure

2 U Rack mounted

Power Input

2pcs AC 85~265V   50/60Hz

Power Output

DC 5V 1A

Power Configuration

Redundant Power Supply

LED Indication

Power

Max Power Consumption

95W

Working Environment

Operating Temperature: -20~70℃
Storage Temperature: -40~70℃
Storage Humidity: 5% to 90% non-condensing

Dimension

483*232*90mm(L*W*H)

Certification

CE, FCC, RoHS

Warranty

3-years
