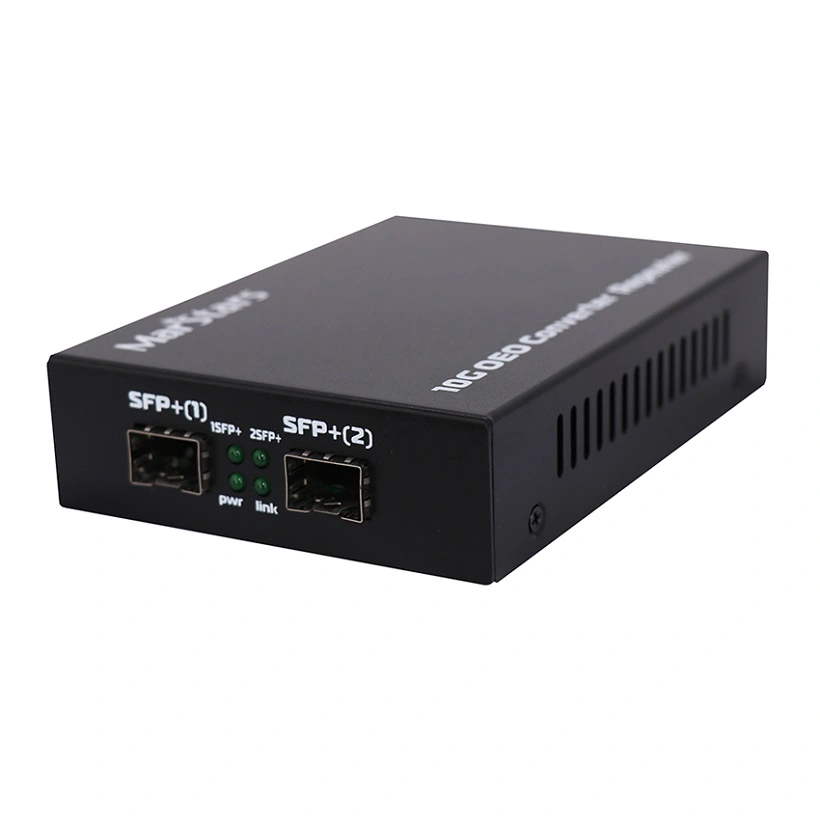

The MT-FC10G-2SFP+ Unmanaged 10Gigabit Media Converter bridges 10GBase-X fiber to 10GBase-X fiber networks, enabling fiber extensions up to 2KM (Multimode) or 160KM (Single Mode/WDM) via SFP modules. It features integrated LED indicators (Power, Link, Activity, Speed) for easy status monitoring and maintenance, helping reduce network downtime. With built-in Link Fault Pass-through (LFP) technology, the MT-FC10G-2SFP+ enhances troubleshooting efficiency and network reliability. Supporting chassis installation, it is a flexible solution for ISP infrastructures and small office deployments. It is also compatible with various transceivers, including 10GBase-X SFP, BIDI, and CWDM modules. Be sure that the wavelength, speed rate, and the distance of the transceiver modules used at both ends of the media converter are consistent.
1x 10GBase-X to 1x 10GBase-X SFP+ Slots Unmanaged 10Gigabit Media Converter
| Protocol Standard | IEEE802.3an, IEEE802.3ae |
|---|---|
| Wavelength | 850nm/1310nm/1550nm |
| Transmission Distance | Depend on Plug-in Fiber Tranceiver |
| Fiber Port | 2 SFP+ Slot(10G SFP+ Transceiver Module) |
| Exchange Attribute | Single Mode, Single-fiber, SC/ST/FC (Diameter 9/125μm ) |
| LED Indicator | PWR( Power Supply ) |
| Power Supply | Power Input: DC5~12V |
| Working Environment | Operating Temperature: -20~70℃ |
| Dimension | 94*71*26mm ( L * W * H ) |
| Certification | CE, FCC, RoHS |
| Warranty | 3-years |
