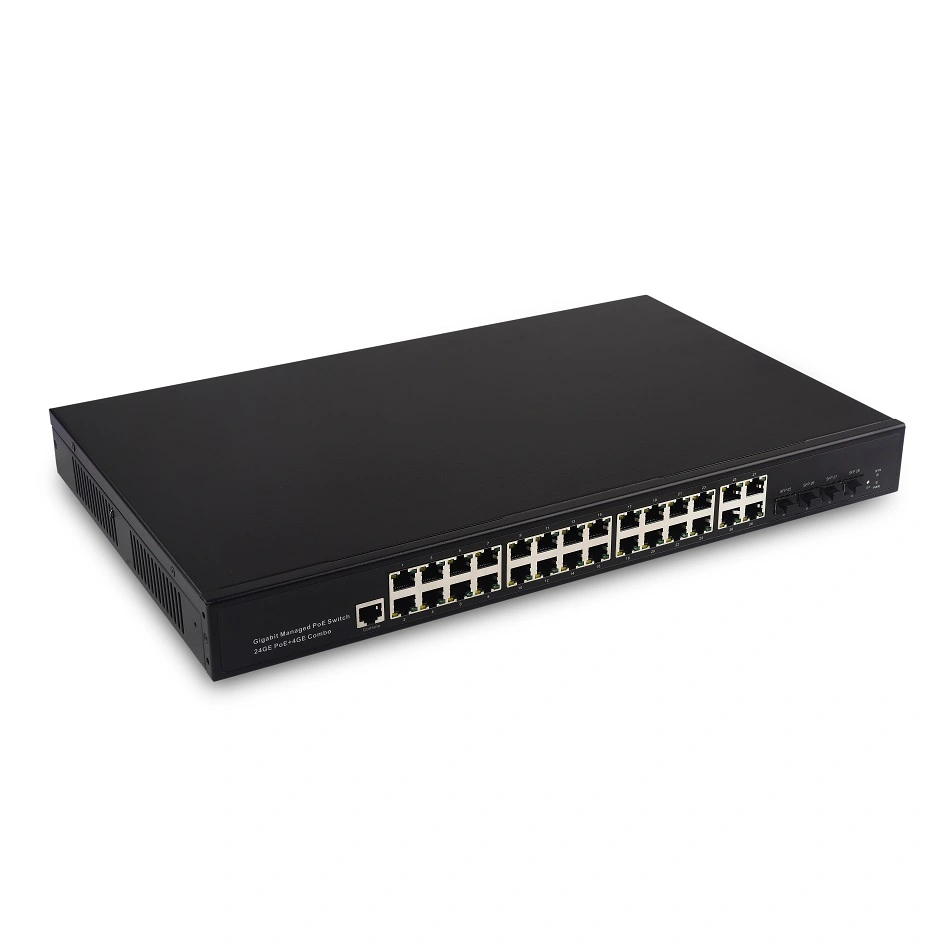

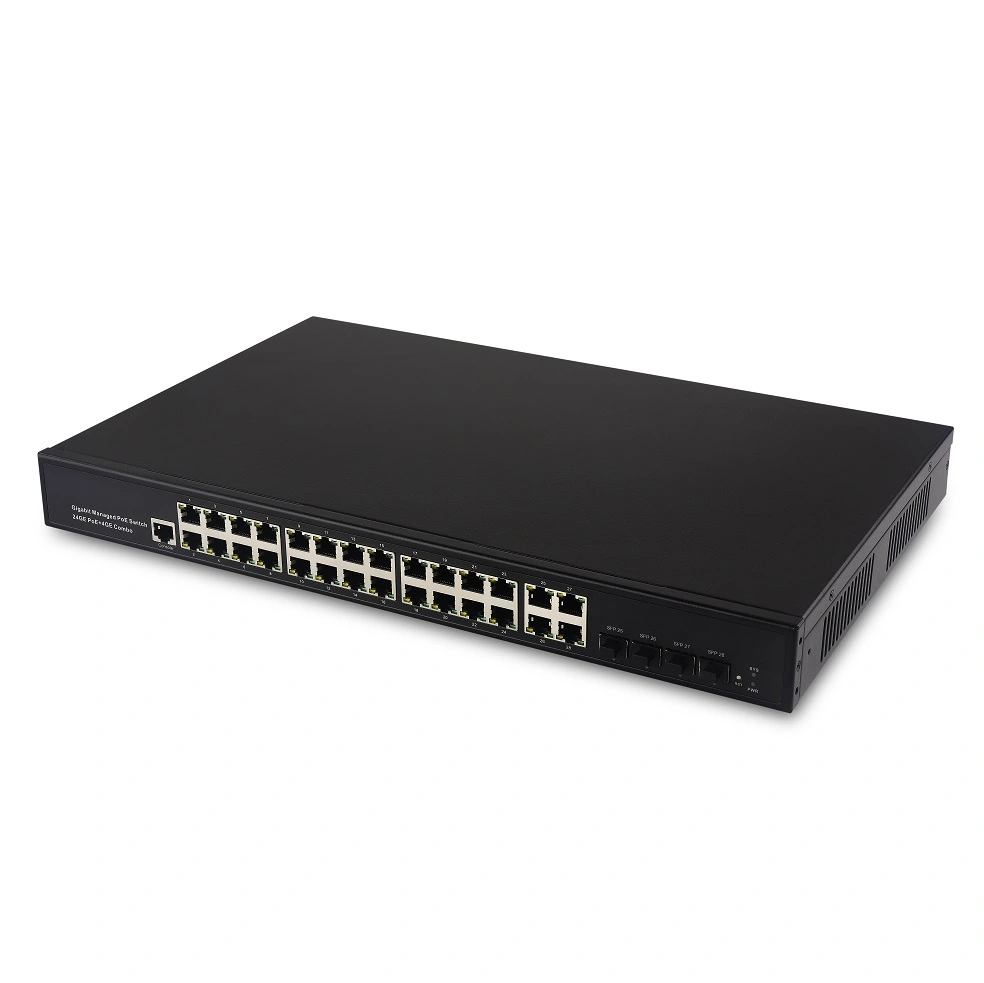

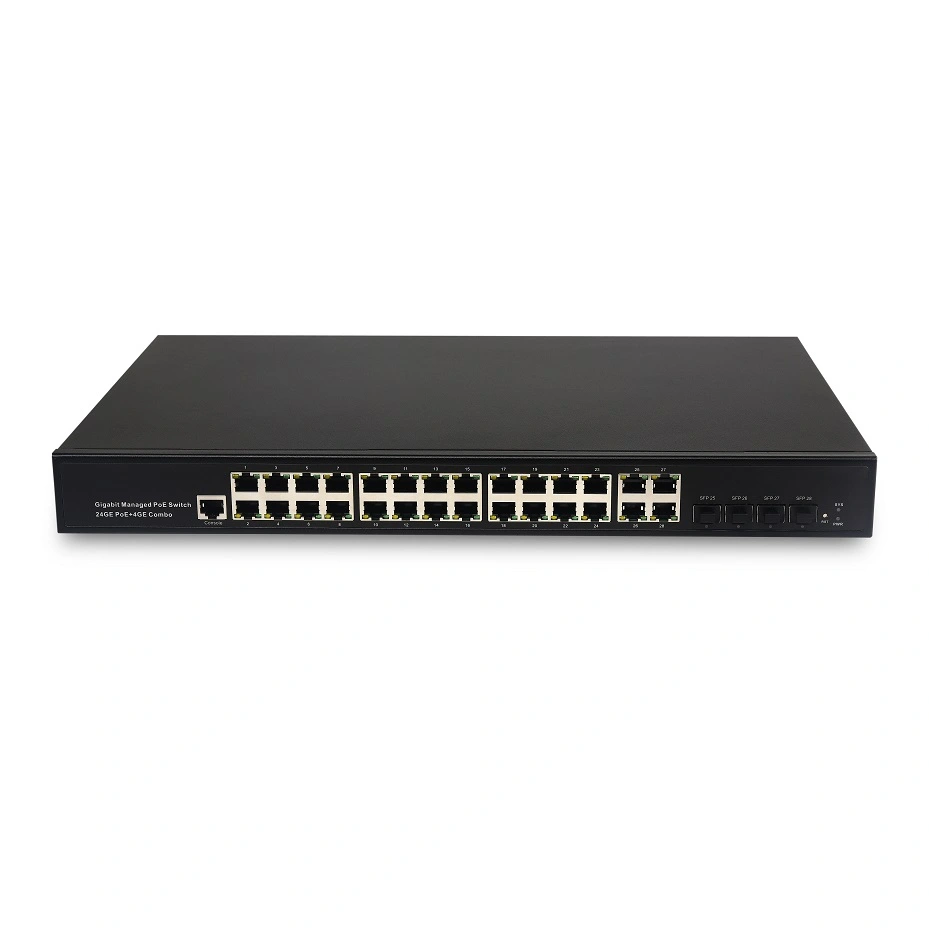

Managed Gigabit POE Switch 24 port

MT-FS7224-4F24P 24-port managed PoE+ switch is equipped 24x 10/100/1000MBASE-T PoE+ ports and 4x 1Gb combo ports, which can be used to link to higher bandwidth upstream equipment. It provides a max power budget of 450W. 24 ports support both IEEE 802.3af/at (up to 30W per port) for powering attached IP phones, wireless access points, or other standards-compliant PoE, and PoE+ end network devices.With high switching performance and reliability, the product features a large cache and low transmission delay, which supports access to Ultra HD video.

Fixed Port	2410/100/1000Base-TX PoE port （data/power） 41000M RJ45 (Combo port) 4*1000M SFP Slot(Combo port)
POE Port	Port 1-24 support PoE @ IEEE802.3af/at 1-4 port supports BT(90W) Optional 5-24 port supports AT(30W)
Console Port	1*console port
PoE Pin	Af/at/bt:12+ 45+;36- 78- Af/at:12+ 36-
Network Protocol	IEEE 802.3 IEEE 802.3u 100BASE-TX IEEE 802.3ab1000BASE-T IEEE 802.3x IEEE 802.3z 1000BASE-X IEEE 802.3af/at IEEE 802.3ad IEEE 802.3q 、IEEE 802.3q/p IEEE 802.1w、IEEE 802.1d 、IEEE 802.1S STP(Spanning Tree Protocol) RSTP/MSTP( Rapid Spanning Tree Protocol) EPPS ring network protocol EAPS ring network protocol
Ethernet Port Feature	10/100/1000Base–T(X) automatic detection, full/half Duplex MDI/MDI-X adaptive
Switching Capacity	56Gbps
Packet Forwarding	41.68Mpps
Forwarding Mode	Store and Forward
MAC	8K
Buffer Memory	4.1M
Transmission Distance	10BASE-T ： Cat3,4,5 UTP(≤250 meter) 100BASE-TX ： Cat5 or later UTP(≤100 meter) 1000BASE-TX ： Cat6 or later UTP(≤1000 meter) 1000BASE-SX:62.5μm/50μm MMF(2m~550m) 1000BASE-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)
FLASH	128M
RAM	128M
Vlan address	4K
LED Indicator	PWR:Power LED SYS:(System LED) Port:(Orange=PoE LED+Green=Link LED)
Power Supply	Built-in power AC 100~240V 50/60HZ, 450W
Power Consumption	Standby:<15W;Full load:<450W
Operation TEMP / Humidity	-20~+55°C:5%~90% RH non condensing
Storage TEMP / Humidity	-40~+75°C;5%~95% RH non condensing
Dimension	440mm280mm45mm
Net /Gross Weight	3.9kg/4.8kg
Installation Method	1U Rack Mount Chassis
Lightning protection level	6KV 8/20us； IP30
Protection Level	IP30
Certification	CCC;CE mark, commercial;CE/LVD EN60950; FCC Part 15 Class B;RoHS
Warranty	1 years, lifetime maintenance.
Layer2 Function	Support L2 managed function, Support IPV4/IPV6 management Support layer3 soft routing (weak three tier) forwarding, Support different network segments, communication between different VLAN Support static routing / default routing 128, 1024 ARP software forwarding Support G.8032 (ERPS), support 255 loops at most, and supports 1024 devices per ring. Support IGMP Snooping V1/V2 and support 1024 multicast groups at most. Support 802.1p/DSCP priority mapping Support ACL, DHCP
