Industrial Unmanaged 4x 10/100/1000Base-T RJ45 to 2x 100/1000Base-X SFP Gigabit PoE+ Ethernet PoE switch

Category:
Get a Quick Quote within 24H

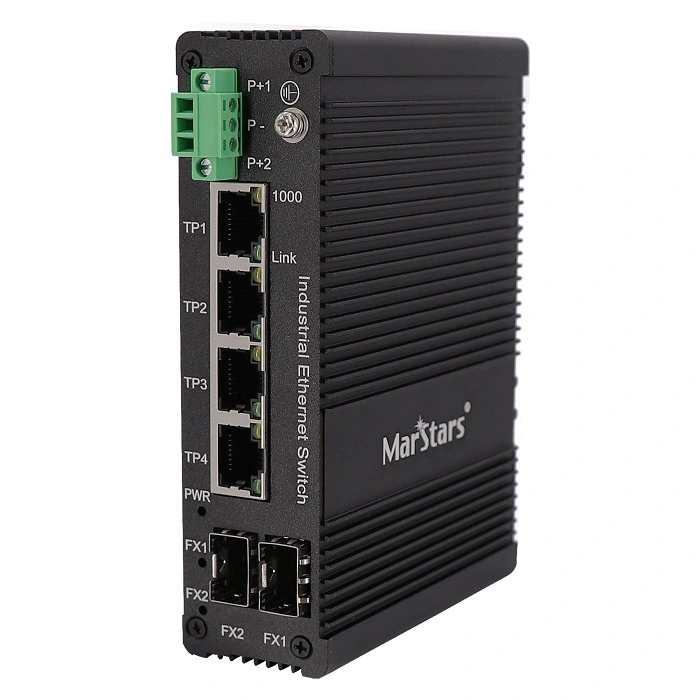

The MT-FI4204 is a plug-and-play unmanaged industrial PoE switch. This switch provides 4 10/100/1000Base-T(X) Ethernet port and 2 1000Base-X SFP slot, the Ethernet port support Power-over-Ethernet (PoE) function. The switches are classified as power source equipment (PSE), and when used in this way, the switches enable centralization of the power supply, providing up to 30 watts of power per port and reducing the effort needed for installing power. The switches can be used to power IEEE802.3af/at standard devices (PD), eliminating the need for additional wiring.

Housed in a rugged IP30-rated enclosure, it operates across a wide temperature range of -40°C to 75°C, making it ideal for harsh environments. The MT-FI4204 features integrated LED indicators (Power, Link, Activity, Speed) for easy status monitoring and maintenance, helping reduce network downtime.

Ports

4x 10/100/1000Base-T Ethernet RJ45
2x 100/1000Base-X Ethernet SFP
Protocol Standard

IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af/at
Flow Control

IEEE802.3x flow control, back press flow control
Transmission Mode

Store and Forward
Forwarding Rate

8.94Mpps
Packet Buffer Size

512K
Backplane Bandwidth

14Gbps
MAC Table Size

2K
Delay Time

< 10μs
Ethernet Port

10/100Base-T(X) auto speed control, full/half duplex and MDI/MDI-X auto-adaptation
LED Indicator

Power indicator: PWR (green);Optical port: FX (green);
Network port indicator: yellow(100 or POE) Green (Link)
Power Supply

Input Voltage: DC10-58V/AC 100-240V 50-60HZ
Connector: 3P Phoenix terminal, dual power supply redundancy
Full Load: <4W
Protection Mechanism: overload protection, reverse connection protection, redundancy protection
Mechanical Structure

Shell: IP40 protection, aluminum alloy housing
Dimension: 130*94*35mm( L*W*H )
Weight: 0.75KG
Installation: DIN-Rail mounting, wall mounting
Operating Environment

Operating Temperature: -40-75°C
Storage Temperature: -40-85°C
Ambient Relative Humidity: 5%-95% (non-condensing)
Industry Standards

IEC 61000-4-5 Level 3 (4KV/2KV) (8/20us)IEC 61000-4-5 Level 3 (6KV/2KV) (10/700us)
IEC 61000-4-3 Level 3 (10V/m)
IEC 61000-4-4 Level 3 (1V/2V)
IEC 61000-4-6 Level 3 (10V/m)
IEC 61000-4-8 Level4 (30A/m)
IEC 61000-4-11 Level3 (10V)
EMI CLASS A
IEC 61000-4-2 Level 4 (15KV/30KV)
Certification

CE, FCC, RoHS
MTBF

>100,000 Hours
Warranty

5-years
