The QSFP28 module provides 100GBase-LR4 throughput up to 10km over a standard pair of single mode fiber (SMF) with duplex LC connectors. This transceiver is compliant with IEEE 802.3 100GBASE-LR4, SFF-8665 and SFF-8636 standards. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as 100G telecom connections, data center, high-performance computing networks, enterprise core and distribution layers, campus networks etc.

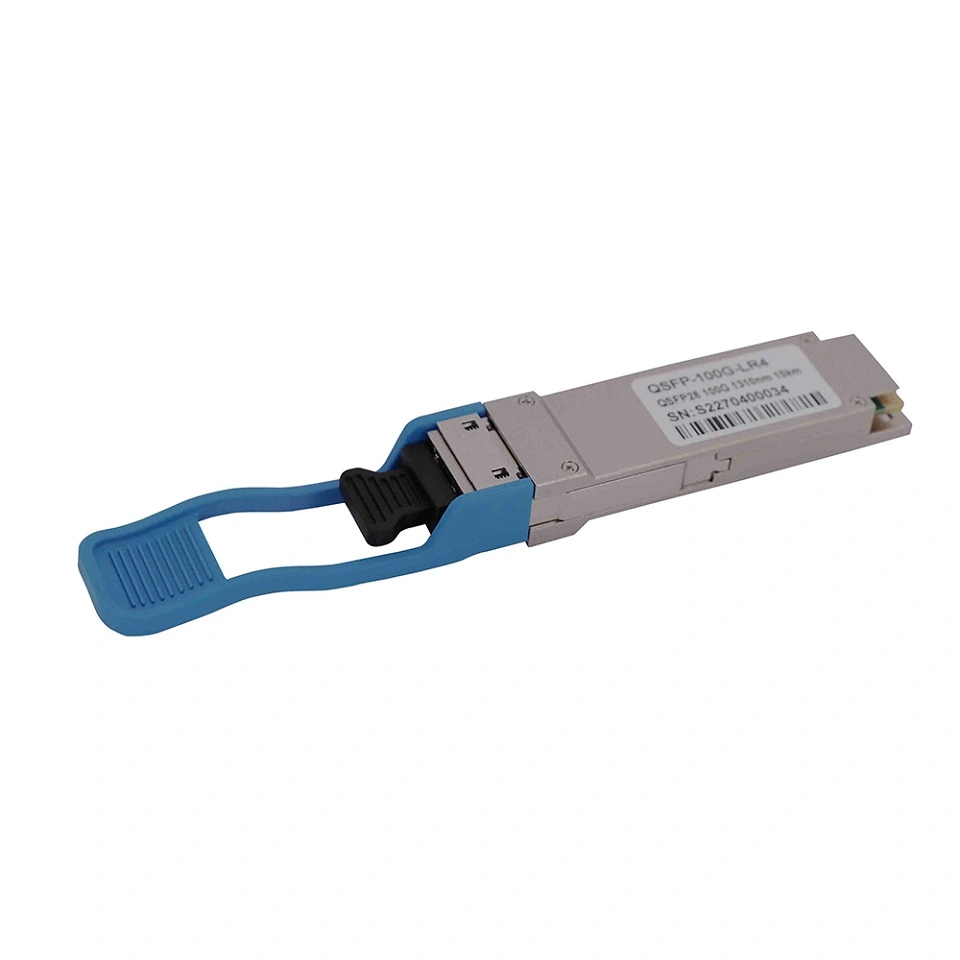

QSFP-100G-LR4 100GBASE-LR4 QSFP28 Optical Transceiver Module (SMF, 1310nm, 10km, LC, DOM)
| SFP Module | QSFP-100G-LR4 100GBASE-LR4 QSFP28 SMF 1310nm 10km LC |
|---|---|
| Form Factor | QSFP28 |
| Max Data Rate | 103.125Gbps (4x 25.78Gbps) |
| Wavelength | 1310nm |
| Max Cable Distance | 10km |
| Connector | Duplex LC/UPC |
| Optical Components | 4 x LAN WDM EML |
| Media | SMF |
| DOM Support | Yes |
| TX Power | -4.3~4.5dBm |
| Receiver Sensitivity | -10.6dBm |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | QSFP28 MSA, SFF-8636, IEEE 802.3bm, CAUI-4 |
