SFP-10G-ZR SFP+ transceiver supports up to 80km over OS2 SMF via an LC duplex connector. This transceiver is compliant with per the RoHS Directive 2011/65/EU. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, 10G Ethernet and Fiber Channel etc.

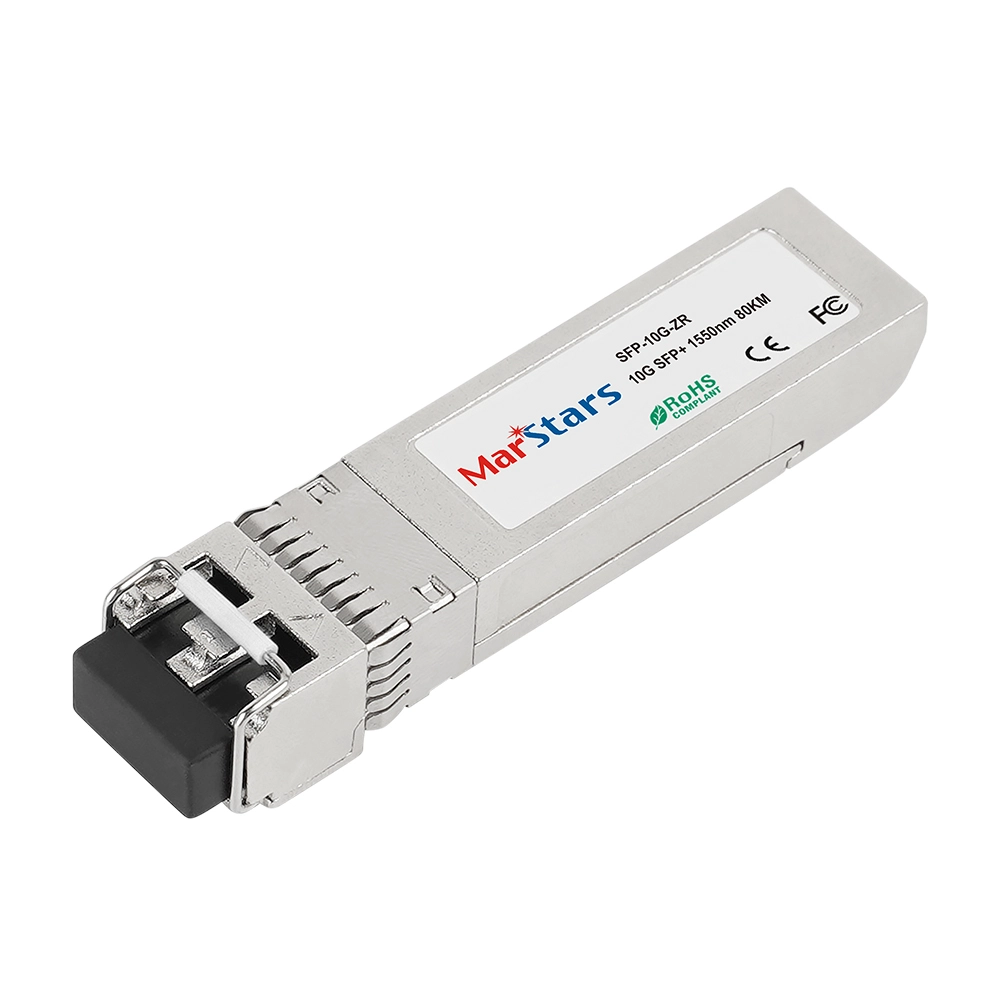

SFP-10G-ZR 10GBASE-ZR SFP+ 1550nm 80km DOM Duplex LC/UPC SMF Optical Transceiver Module
| SFP Module | 10G SFP+ZR 1550nm SM 80km |
|---|---|
| Form Factor | SFP+ |
| Max Data Rate | 10.3125Gbps |
| Wavelength | 1550nm |
| Max Cable Distance | 80km |
| Connector | Duplex LC |
| Optical Components | EML 1550nm and APD receiver |
| Media | SMF |
| DOM Support | Yes |
| TX Power | 0~4dBm |
| Receiver Sensitivity | <-21dBm |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI |
