FE-100LX SFP transceiver supports up to 20km link lengths over single-mode fiber (SMF) using a wavelength of 1310nm via an LC connector. Each SFP transceiver module is individually tested to be used on a series of switches, routers, servers, network interface card (NICs) etc. Featuring low power consumption, this optic transceiver provides 100BASE Ethernet connectivity options for Fast Ethernet and Data Centers deployments.

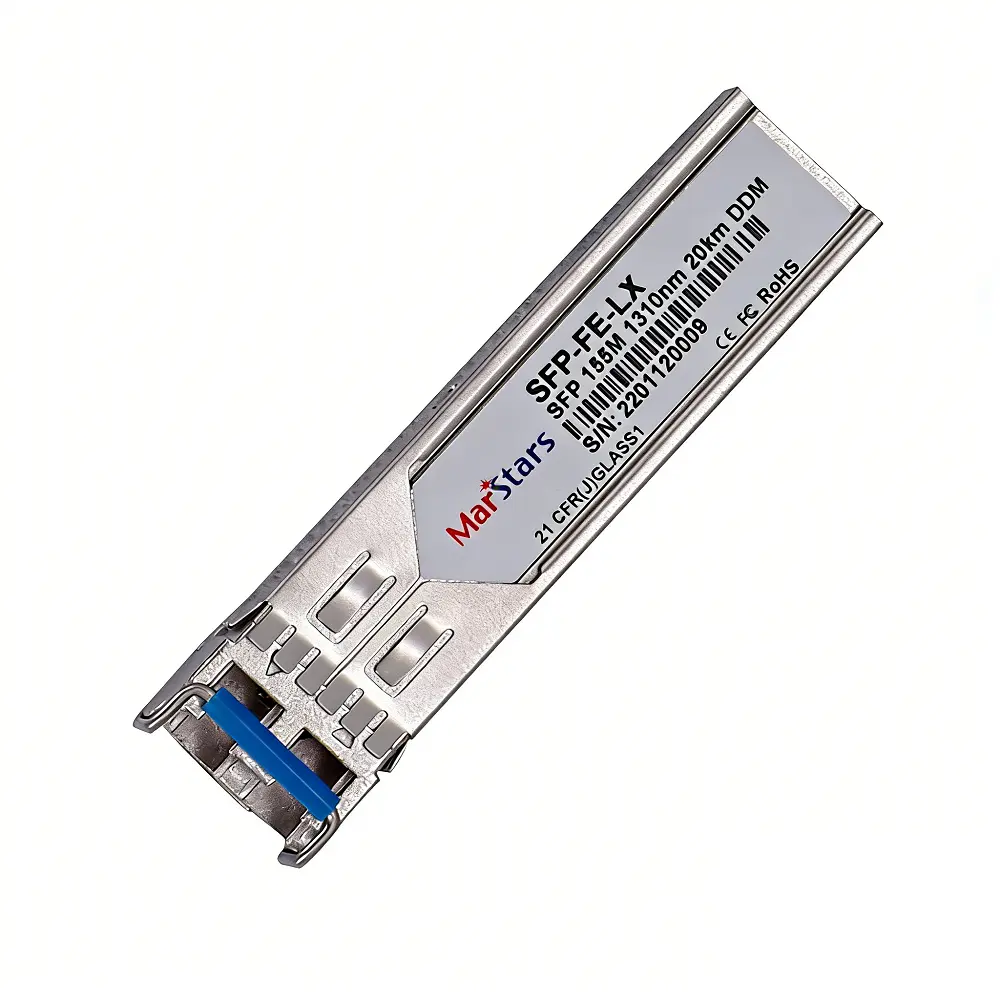

155M FE-100LX 100BASE-LX SFP Transceiver Module (SMF, 1310nm, 20km, LC, DOM)
| SFP Module | 155M 1310nm FE-100LX |
|---|---|
| Form Factor | SFP |
| Max Data Rate | 100Mbps |
| Wavelength | 1310nm |
| Max Cable Distance | 20km |
| Connector | Duplex LC |
| Optical Components | FP 1310nm |
| Media | SMF |
| DOM Support | Yes |
| TX Power | -15~-8dBm |
| Receiver Sensitivity | < -32.5dBm |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | IEEE802.3ab, GR-468, MSA Compliant |
