Gigabit POE Switch 24 port

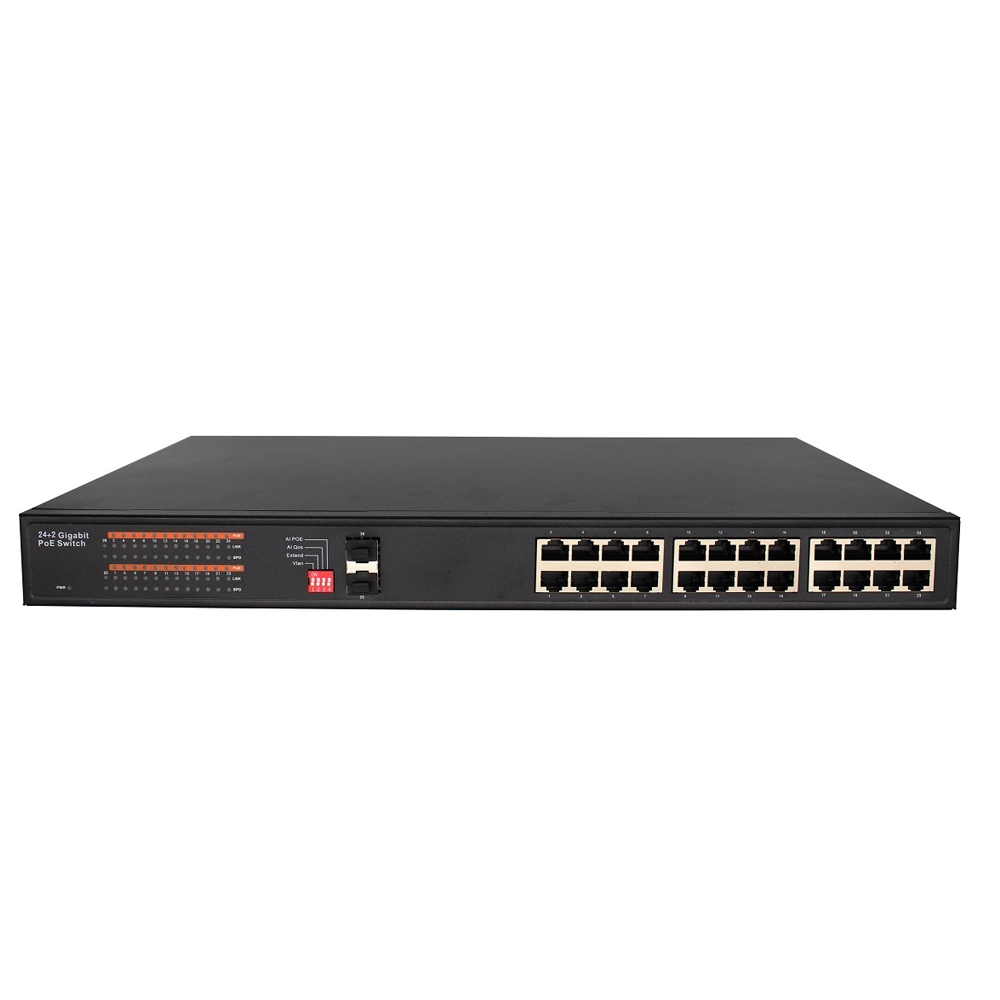

26 Port Full Gigabit PoE Switch with 2* 1G SFP Uplink

Introduction :

24*10/100/1000M + 2**100/1000M SFP Port PoE Switch,1-24 ports support IEEE 802.3af/at;Comply with IEEE 802.3, IEEE 802.3u,IEE802.3ab,IEE802.3zstandards;PoE port support AF/AT intelligent recognition. Standard power is 15.4W/port,Maximum power: 30W/port;

Support AI Watchdog, Port self-healing, VLAN, extend 300meter distance, Auto Speed Change, Priority port & reduce the after-resale;

Supports POE devices such as wireless access points (APs) and network surveillance cameras through Category 5/6 Ethernet cables;

The power supply total is 450W;

Fixed Port	2410/100/1000 Base-T/TX PoE ports (Data/Power) 21000Base-X uplink SFP fiber slot ports (Data)
POE Port	Port 1-24 support PoE @ IEEE802.3af/at
Features	With the Dial code switch, support port priority by default. E: AI Extend 300meters transmission and auto speed change of single port (limit 10Mbps), other ports maintain 100M/1000M within 100 meters; V: Turn on, 1-16 Port support each port Isolation & VLAN; D: Turn on, 1-16 Port support AI-PoE Network self-healing mode (PoE Watchdog function), Automatic solve the camera problem &reduce after-sale.
Network Protocol	IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T; IEEE802.3x.
Ethernet Port Feature	10/100/1000Base–T(X) automatic detection, full/half Duplex MDI/MDI-X adaptive
Switching Capacity	54Gbps (non-blocking)
Forwarding Mode	Store and Forward
MAC	8K
Buffer Memory	4M
Twisted Pair Transmission	10BASE-T:Cat5 UTP(≤300 meter) 100BASE-TX:Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP (≤100 meter)
Power Supply Pin	Default 1/2(+), 3/6(-)
MAX / AVERAGE Power Per Port	30W/15.4W
Total PWR / Input Voltage	450W
Power Consumption	Standby:<15W; Full load:<450W
LED Indicator	Power indicator: PWR (Green); Network indicator: 1-24(Link/Act)/ (Green),25–27(Link/Act)/ (Green)
Power Supply	Built-in power adaptor AC100~240V 50-60Hz, 450W
Operation TEMP / Humidity	-20~+55°C:5%~90% RH non condensing
Storage TEMP / Humidity	-40~+75°C;5%~95% RH non condensing
Dimension	44028044MM
Net /Gross Weight	<3kg / <4kg
Installation Method	desktop type, wall mounted;
Protection	IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-5(Lightning protection/Surge): Power:CM±4kV/DM±2kV; Port: ±4kV
Protection Level	IP30
Certification	CCC;CE mark, commercial;CE/LVD EN60950; FCC Part 15 Class B;RoHS
Warranty	1 years, lifetime maintenance.
