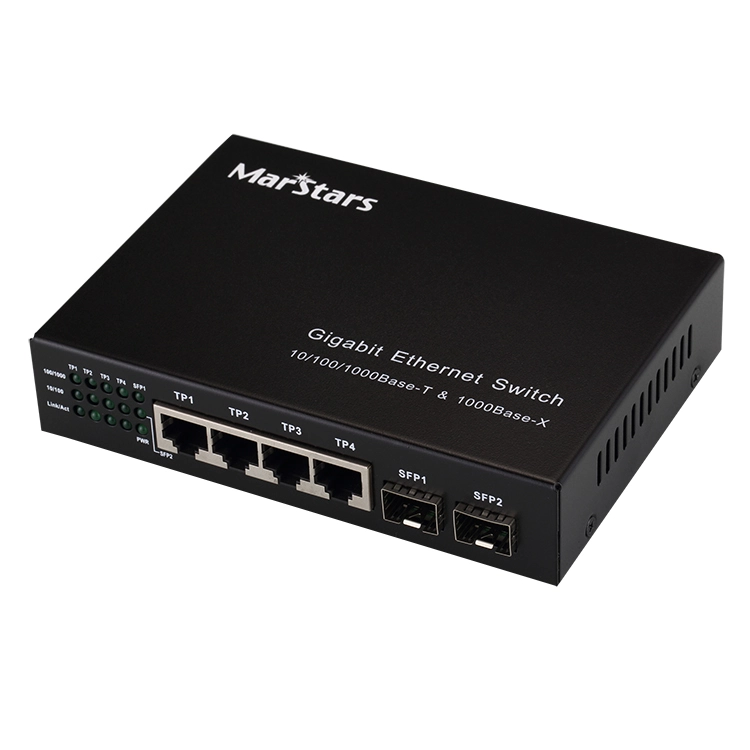

6-port Gigabit Fiber Ethernet Switch, 2-port 1000Base-X SFP Slot and 4-port 10/100/1000Base-T(X) RJ45 Ethernet Port
MT-FS3204 is a 10/100/1000M self-adaptive Gigabit fiber Ethernet switch, with 2 1000M SFP Slot and 4 10/100/1000Base-TX self-adaptive Ethernet RJ45 interfaces.
The product design conforms to the Ethernet standard, adds lightning protection and anti-static protection measures, and has a wide range of operating temperature from -20°C to 70°C, with stable and reliable performance.
| Fixed Port | 4*10/100/1000Base TX+2*1000Base X SFP |
|---|---|
| Wavelength | 850nm/1310nm/1550nm |
| Transmission Distance | Cat5 100m |
| Ethernet Port | 10/100/1000M RJ45 Ports, Connection STP / UTP Cat5/Cat5e Cooper Cable |
| Fiber Port | Multimode, Dual-fiber SC/ST/FC (Diameter 50/125, 62.5 / 125μm) |
| PoE Function (Optional) | PoE port:1-4 |
| Exchange Attribute | Conversion Method: Media conversion, store and forward / straight in |
| Network Topology | Ring topology:Not Support |
| LED Indicator | P:Power Supply |
| Power Supply | Power Input: DC5V |
| Working Environment | Operating Temperature: -20~70℃ |
| Dimension | 140*88*28mm ( L * W * H ) |
