Gigabit Media Converter SM 2-RJ45

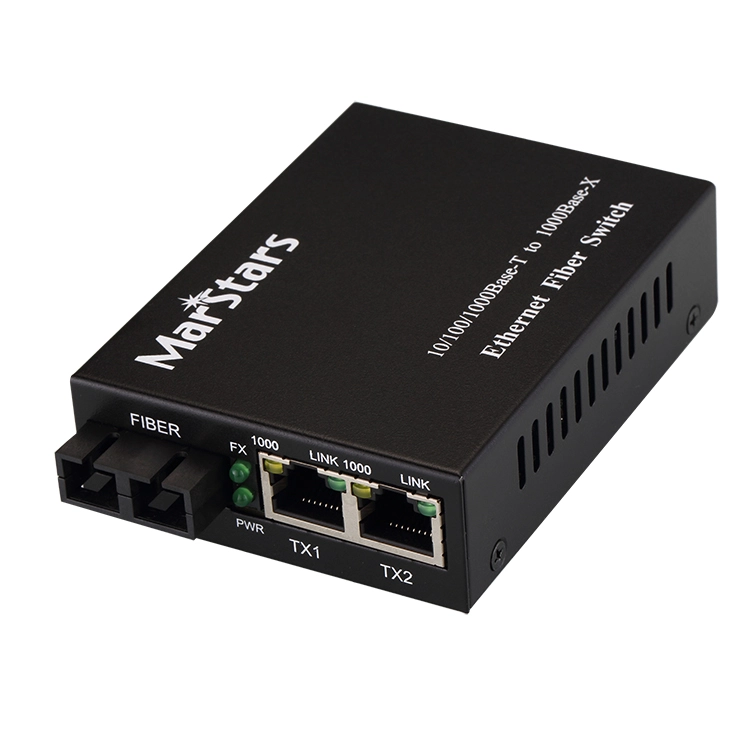

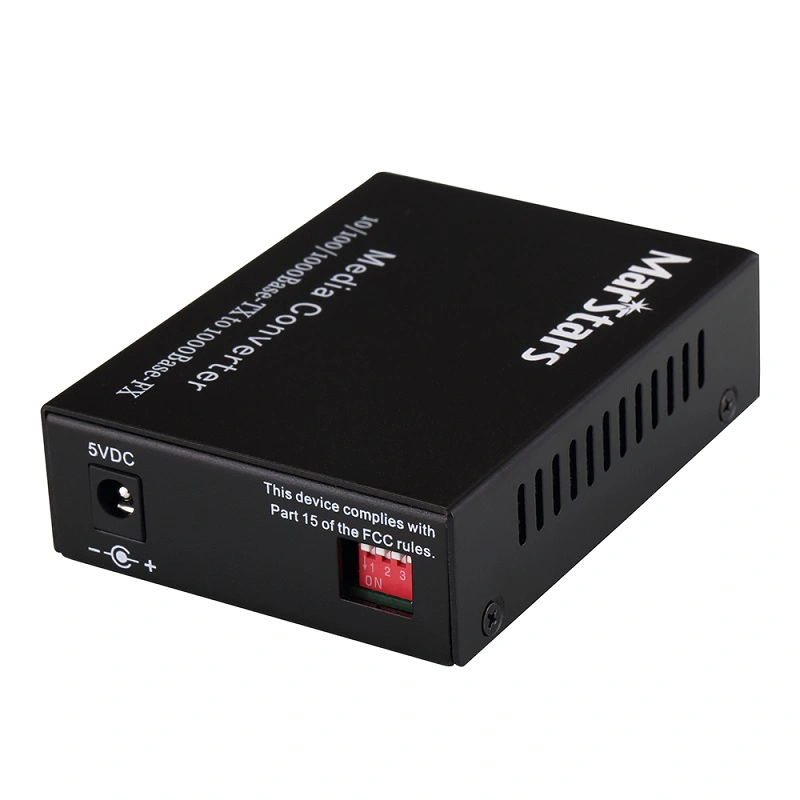

The MT-FC4102-S20 Gigabit Ethernet Media Converter bridges 100/1000Base-X fiber to 10/100/1000Base-T copper networks, enabling fiber extensions up to 20KM (Single Mode). It features integrated LED indicators (Power, Link, Activity, Speed) for easy status monitoring and maintenance, helping reduce network downtime. With built-in Link Fault Pass-through (LFP) technology, the MT-FC4102-S20 enhances troubleshooting efficiency and network reliability. Supporting chassis installation, it is a flexible solution for ISP infrastructures and small office deployments.

Protocol Standard	IEEE802.3, IEEE802.3u, IEEE802.3x Flow control, IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree
Wavelength	850nm/1310nm/1550nm
Transmission Distance	Cat5 100mMultimode, Dual-fiber 550m Single Mode, Dual-fiber 20/40/60/80/100/120Km
Ethernet Port	RJ45 Ports, Connection STP / UTP Cat5/Cat5e Cooper Cable
Fiber Port	Multimode, Dual-fiber SC/ST/FC (Diameter 50/125, 62.5 / 125μm)Single Mode, Dual-fiber SC/FC (diameter 9/125μm )
Exchange Attribute	Conversion Method: Media conversion, store and forward / straight inMAC Add: 1 K Cache: 1 Mbit Full duplex state: flow control, half-duplex: backpressure mode Store and Forward: 9.6us, Straight In: 0.9us BER: <1/1000000000
LED Indicator	PWR( Power Supply )FX LINK/ACT FDX ( Ethernet port full / half duplex mode ) TX LINK/ACT ( Ethernet port communication / action ) 1000 ( 1000/100/10M transmission rate ) FX ( Optical signal )
Power Supply	Power Input: DC5V2AFull Load: <2.5 W
Working Environment	"Operating Temperature: -20~70℃ Storage Temperature: -40~70℃" Storage Humidity: 5% to 90% non-condensing
Dimension	947126mm ( L * W * H )
Certification	CE, FCC, RoHS
Warranty	3-years
