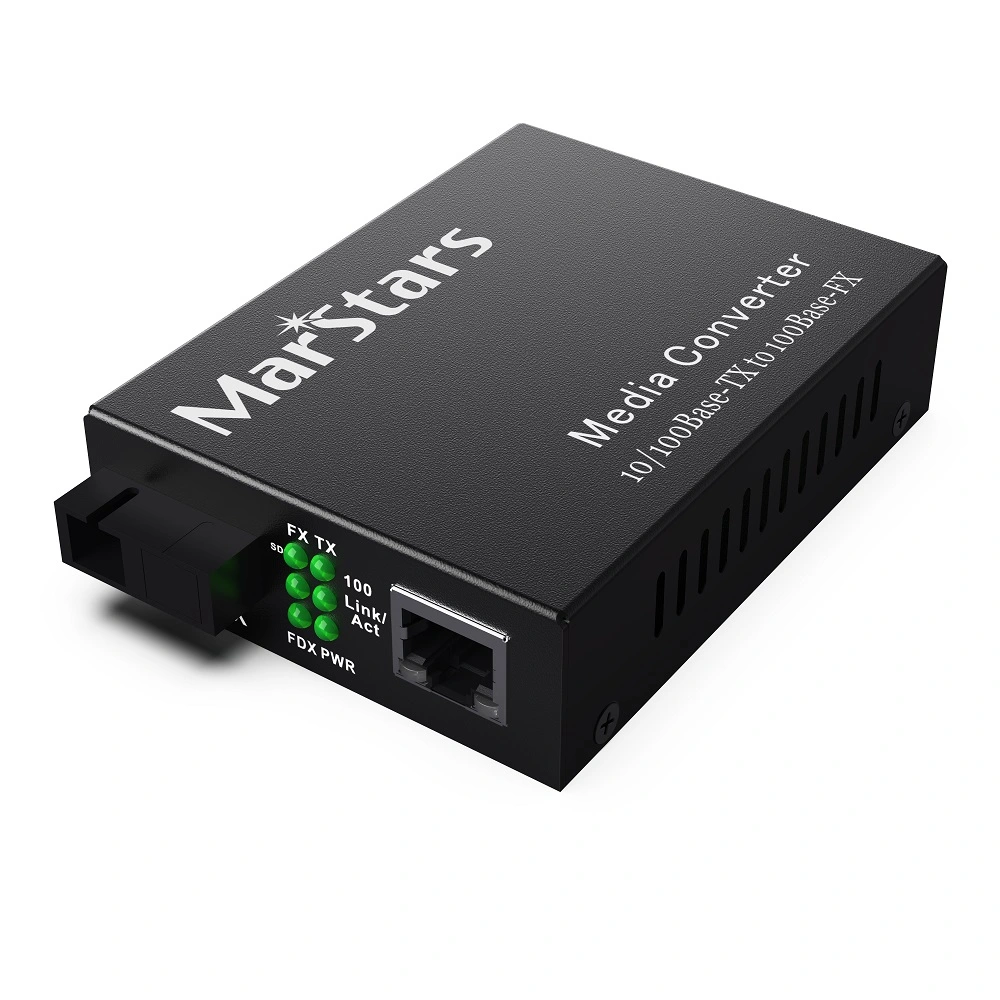

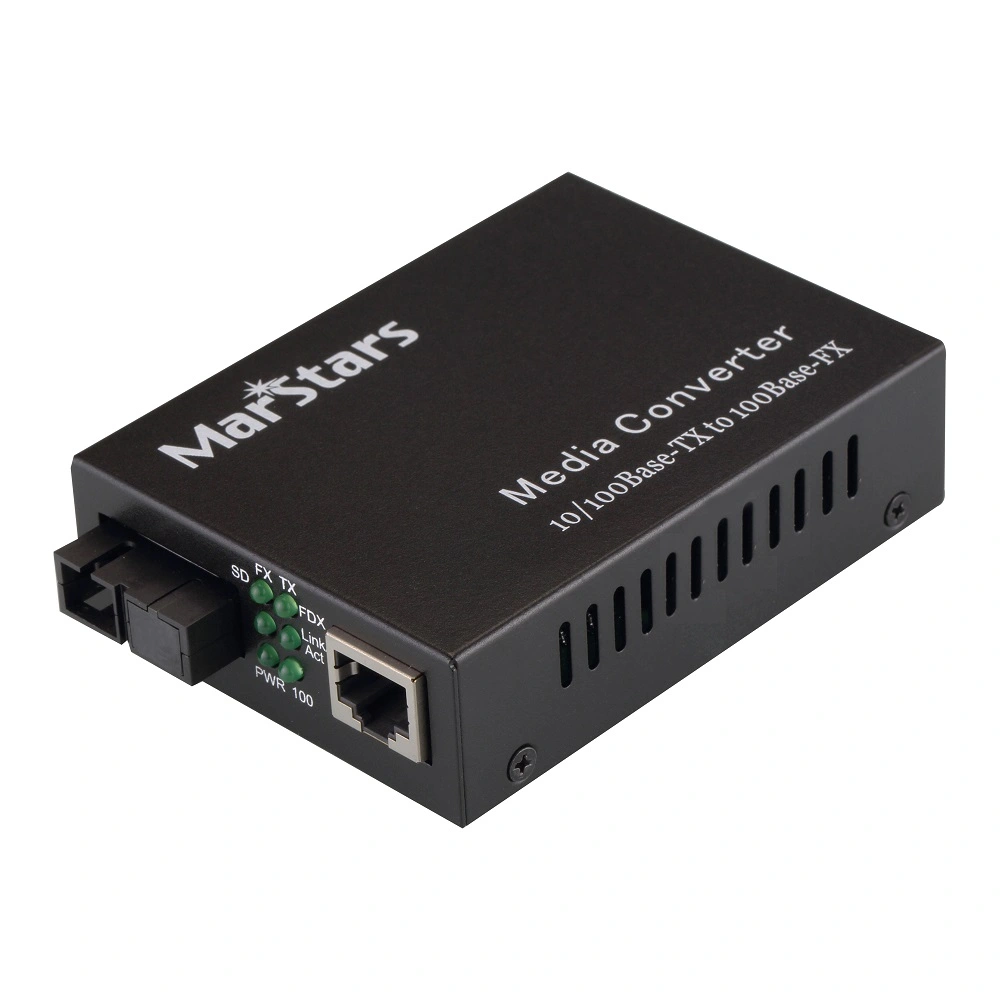

100M WDM Media Converter

Marstars MT-FC2100D WDM Fast Ethernet Media Converter bridges 100Base-X fiber to 10/100Base-T copper networks, enabling fiber extensions up to 20KM (Single Mode). It features integrated LED indicators (Power, Link, Activity, Speed) for easy status monitoring and maintenance, helping reduce network downtime. With built-in Link Fault Pass-through (LFP) technology, the MT-FC2100D enhances troubleshooting efficiency and network reliability. Supporting chassis installation, it is a flexible solution for ISP infrastructures and small office deployments.

Protocol Standard	IEEE802.3, IEEE802.3u, IEEE802.3x Flow control, IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree
Wavelength	1310nm/1550nm
Transmission Distance	"Cat5 100m Single Mode, Single-fiber 20/40/60/80/100Km"
Ethernet Port	RJ45 Ports, Connection STP / UTP Cat5/Cat5e Cooper Cable
Fiber Port	Single Mode, Single Fiber, SC/ST/FC (Diameter 9/125μm )
Exchange Attribute	"Conversion Method: Media conversion, store and forward / straight in MAC Add: 1 K" Cache: 1 Mbit Full duplex state: flow control, half-duplex: backpressure mode Store and Forward: 9.6us, Straight In: 0.9us BER: <1/1000000000
LED Indicator	PWR( Power Supply )FX LINK/ACT FDX ( Ethernet port full / half duplex mode ) TX LINK/ACT ( Ethernet port communication / action ) 100 ( 100/10M transmission rate ) FX ( Optical signal )

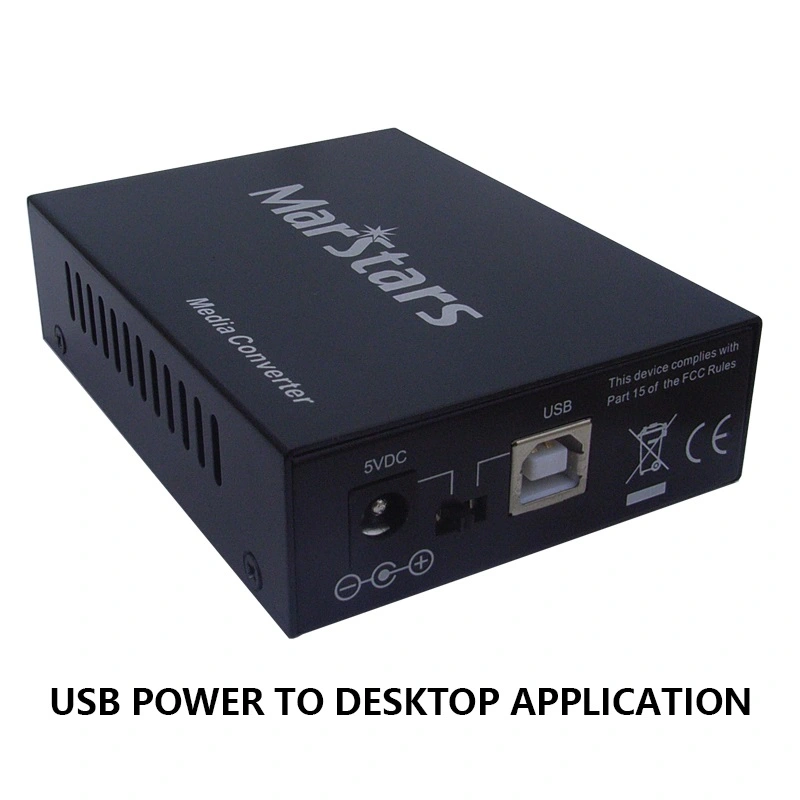

Power Supply	Power Input: DC5V1AFull Load: <2.5 W
Working Environment	Operating Temperature: -20~70℃Storage Temperature: -40~70℃ Storage Humidity: 5% to 90% non-condensing
Dimension	947126mm ( L * W * H )
Certification	CE, FCC, RoHS
Warranty	3-years
