The QSFP+ module is designed for use in 40GBASE Ethernet throughput up to 40km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors. This transceiver is compliant with QSFP+ MSA, IEEE 802.3bm 40GBASE-ER4 and OTU3 standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications.

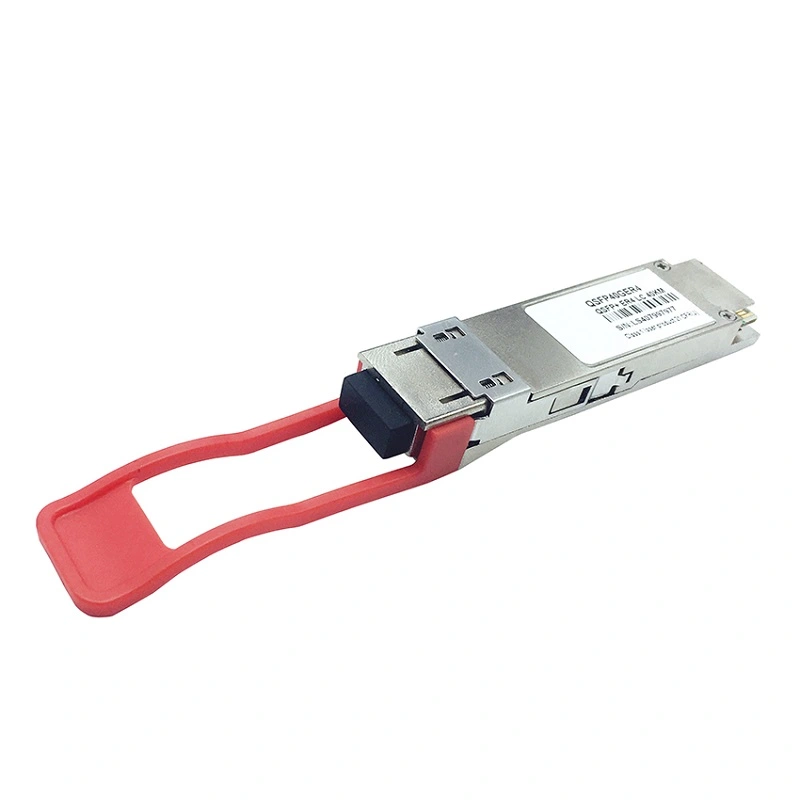

QSFP-40G-ER4 40GBASE-ER4 QSFP+ Optical Transceiver Module (SMF, 1310nm, 40km, LC, DOM)
| SFP Module | 40G QSFP+ER4 SMF 1310nm 40km |
|---|---|
| Form Factor | QSFP+ |
| Max Data Rate | 41.25Gbps |
| Wavelength | 1310nm |
| Max Cable Distance | 40km |
| Connector | Duplex LC |
| Optical Components | DFB CWDM |
| Media | SMF |
| DOM Support | Yes |
| TX Power | -2.7~4.5dBm |
| Receiver Sensitivity | <-21.2dBm |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | IEEE 802.3 40GBASE-SR4, SFF-8436 |
