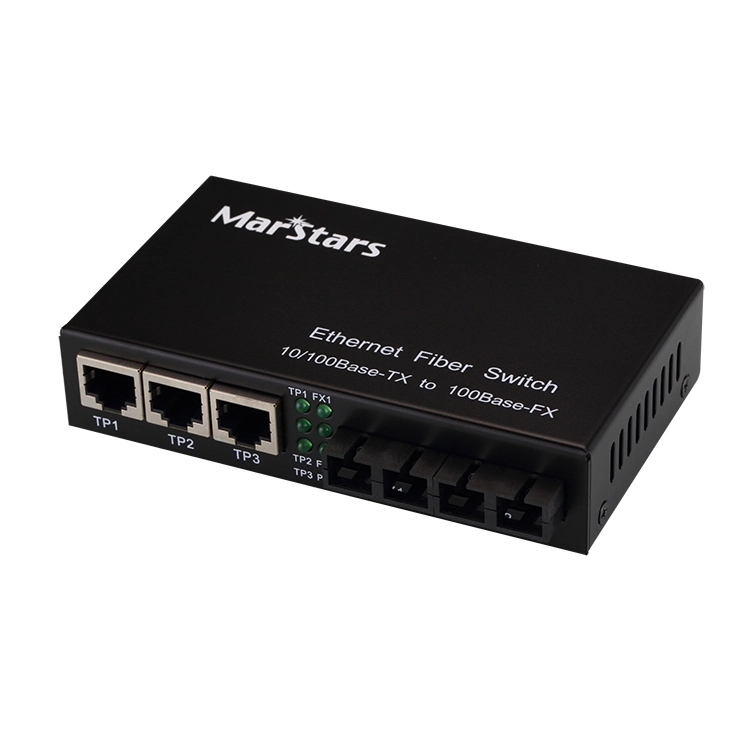

5-port Fiber Fiber Ethernet Switch, 2-port 100Base-FX Fiber Port and 3-port 10/100Base-T(X) RJ45 Ethernet Port

MT-FS1005 series is is a 10/100M self-adaptive Fast Ethernet fiber switch, with 2 100M Fiber port and 3 10/100Base-TX self-adaptive Ethernet RJ45 interfaces. The product design conforms to the Ethernet standard, adds lightning protection and anti-static protection measures, and has a wide range of operating temperature from -20°C to +70°C, with stable and reliable performance.

The device can be widely used in various broadband data transmission fields such as smart buildings, smart cities, smart communities, smart transportation, telecommunications, security, financial securities, customs, shipping, electricity, water conservancy and oil fields.

Fixed Port

3*10/100Base TX+2*100Base FX

Transmission Distance

Cat5 100m
Multimode, Single/Dual-fiber 2Km
Single Mode, Single-fiber 20/40/60/80/100Km
Single Mode, Dual-fiber 20/40/60/80/100/120Km

Ethernet Port

10/100M RJ45 Ports, Connection STP / UTP Cat5/Cat5e Cooper Cable

Fiber Port

Multimode, Dual-fiber SC/ST/FC (Diameter 50/125, 62.5 / 125μm)
Single Mode, Single Fiber, SC/ST/FC (Diameter 9/125μm )
Single Mode, Dual-fiber SC/FC (diameter 9/125μm )

Exchange Attribute

Conversion Method: Media conversion, store and forward / straight in
MAC Add: 1 K
Switching capacity:1G
Full duplex state: flow control, half-duplex: backpressure mode
Store and Forward: 9.6us, Straight In: 0.9us
BER: <1/1000000000

Network Topology

Ring topology:Not Support
Star topology:Support
Bus topology:Support
Tree Topology:Support

LED Indicator

PWR:Power Supply
FX1-FX2:Fiber Port Indicator
1X-3X:Ethernet Port Indicator

Power Supply

Power Input: DC5V2A
Full Load: <5 W

Working Environment

Operating Temperature: -20~70℃
Storage Temperature: -40~70℃
Storage Humidity: 5% to 90% non-condensing

Dimension

136*70*25mm ( L * W * H )

Weight

0.5KG

MC&INGRESS PROTECTION

Surge protection of Power:IEC 61000-4-5  Level 3(2KV)(8/20us)
Surge protection of Ethernet port:IEC 61000-4-5  Level 4(4KV)(10/700us)
ESD:IEC 61000-4-2  Level 4 (8K/15K)
