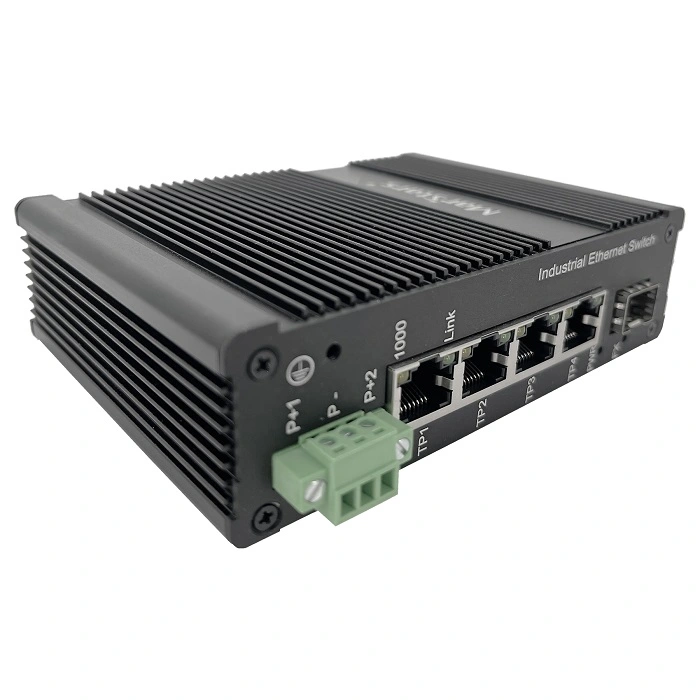

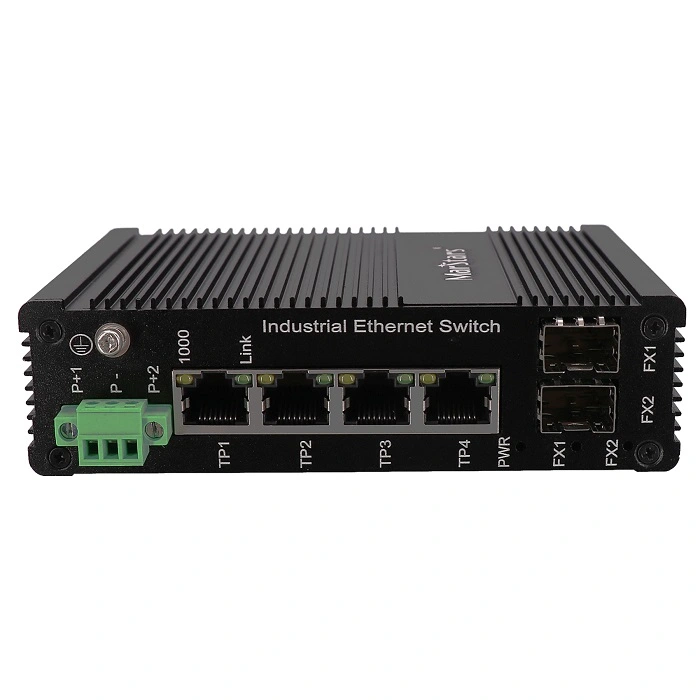

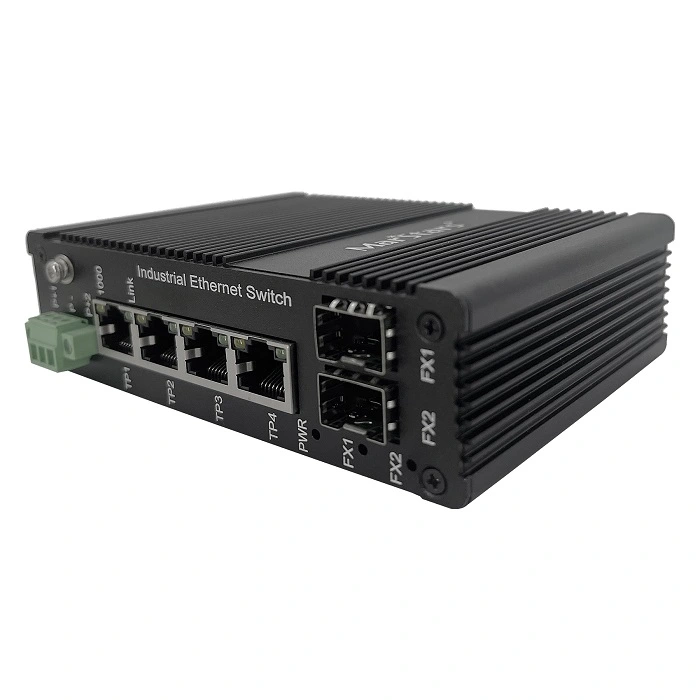

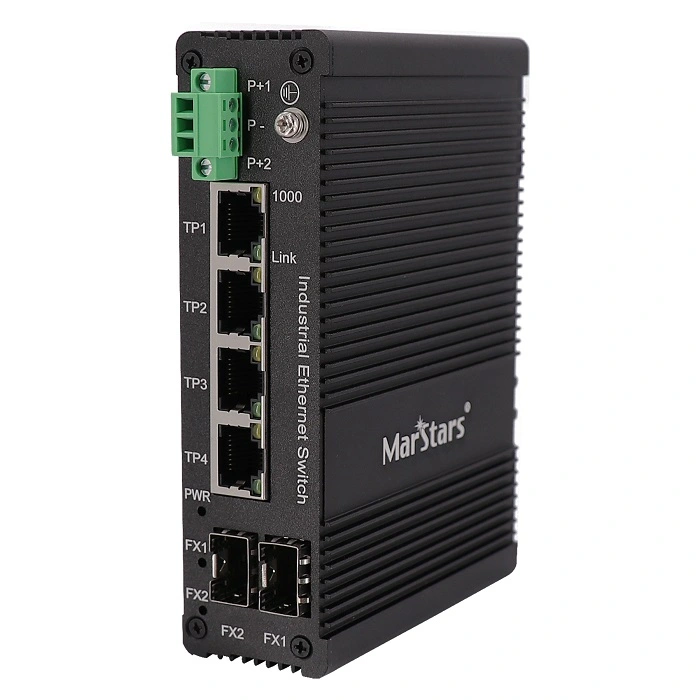

Lite Managed Gigabit Industrial Switch 4-Port POE bT

The MT-FI4204W is a Web Managed (lite Managed) industrial PoE switch. This switch provides 4 10/100/1000Base-T(X) Ethernet port and 2 1000Base-X SFP slot, the Ethernet port support Power-over-Ethernet (PoE) function. The switches are classified as power source equipment (PSE), and when used in this way, the switches enable centralization of the power supply, providing up to 90 watts of power per port and reducing the effort needed for installing power. The switches can be used to power IEEE802.3af/at/bt standard devices (PD), eliminating the need for additional wiring.

Housed in a rugged IP30-rated enclosure, it operates across a wide temperature range of -40°C to 75°C, making it ideal for harsh environments. The MT-FI4204W features integrated LED indicators (Power, Link, Activity, Speed) for easy status monitoring and maintenance, helping reduce network downtime.

Ports	4x 10/100/1000Base-T Ethernet RJ45 2x 100/1000Base-X Ethernet SFP
POE Port	Port 1-4 support PoE @ IEEE802.3af/at/bt 90W/port, total <200W
Protocol Standard	IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af/at
Flow Control	IEEE802.3x flow control, back press flow control
Transmission Mode	Store and Forward
Forwarding Rate	8.94Mpps
Packet Buffer Size	512K
Backplane Bandwidth	14Gbps
MAC Table Size	2K
Delay Time	< 10μs
Ethernet Port	10/100Base-T(X) auto speed control, full/half duplex and MDI/MDI-X auto-adaptation
LED Indicator	Power indicator: PWR (green);Optical port: FX (green); Network port indicator: yellow(100 or POE) Green (Link)
Power Supply	Input Voltage: DC10-58V/AC 100-240V 50-60HZ Connector: 3P Phoenix terminal, dual power supply redundancy Full Load: <4W Protection Mechanism: overload protection, reverse connection protection, redundancy protection
Mechanical Structure	Shell: IP40 protection, aluminum alloy housing Dimension: 1309435mm( LWH ) Weight: 0.75KG Installation: DIN-Rail mounting, wall mounting
Operating Environment	Operating Temperature: -40-75°C Storage Temperature: -40-85°C Ambient Relative Humidity: 5%-95% (non-condensing)
Industry Standards	IEC 61000-4-5 Level 3 (4KV/2KV) (8/20us)IEC 61000-4-5 Level 3 (6KV/2KV) (10/700us) IEC 61000-4-3 Level 3 (10V/m) IEC 61000-4-4 Level 3 (1V/2V) IEC 61000-4-6 Level 3 (10V/m) IEC 61000-4-8 Level4 (30A/m) IEC 61000-4-11 Level3 (10V) EMI CLASS A IEC 61000-4-2 Level 4 (15KV/30KV)
Certification	CE, FCC, RoHS
MTBF	>100,000 Hours
Warranty	5-years
